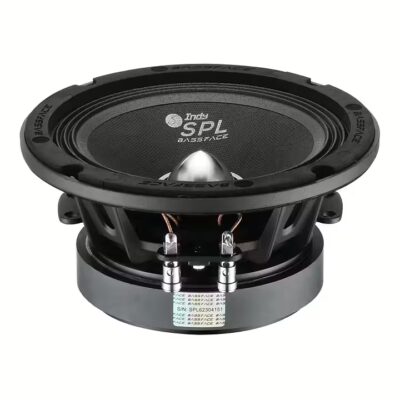

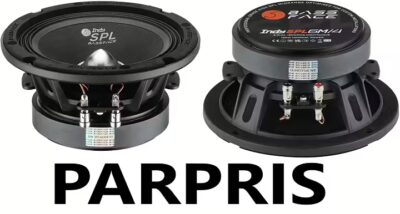

BASSFACE SPL6

Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) 150 Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 120 Overall Diameter (mm) 174 Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 120 Installation Cut-Out Diameter (mm) 147 Overall Depth (mm) 87.5 Mounting Depth (mm) 72.5 Front Protrusion From Mounting Plane (mm) 15 System Frequency Response (Hz) 140>2000 Impedance (Ohm) (Nominal) 4 Sensitivity (db/1Wm) 92.5 Total Magnet Weight (Oz) 30 Magnet Size (mm) 120×20 Magnet Type Y35 Magnet Qty 1 Top Plate thickness (mm) 6 Back Plate Thickness (mm) 6 Voice Coil Former Spec Kapton Voice Coil Type CCA Round Wire Voice Coil External Diameter (mm) 40 Voice Coil Internal Diameter (mm) 38.5 Voice Coil Winding Height (mm) 10 Voice Coil Winding (Layers) 2 Cone Type Non Pressed Paper Spider Compliance Medium Spider Type Linear Spider Diameter (mm) 108 Spider Design Single Surround Triple Roll Surround Material Cloth Tinsel Wire Single Terminal Push
