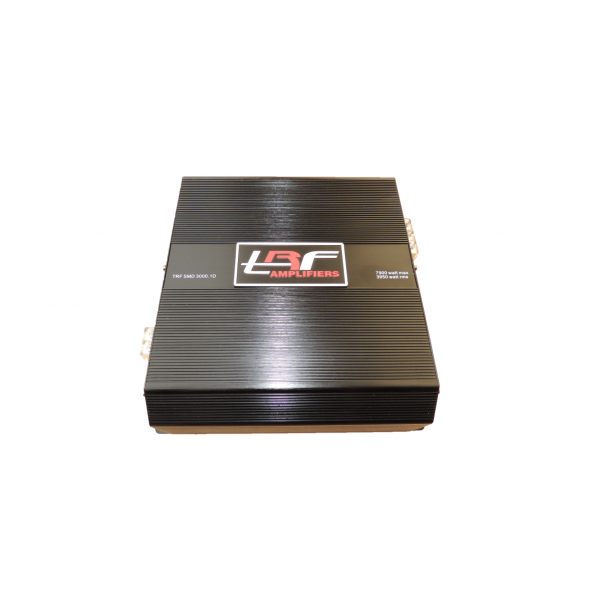

TRF SMD 3000.1D 3950wrms

RMS 1X 1200 4ohm RMS 1X 2200 2ohm RMS 1 X 3950 1ohm TEST VOLTAGE & THD:14.4V -1%THD RMS 1X 950 4ohm RMS 1X1700 2ohm RMS 1X 3000 1ohm TEST VOLTAGE & THD:12.6V -1%THD MAX 2X 2400 4ohm MAX 2X 4400 2ohm MAX 1X 7900 1ohm TOTAL 7900W MAX TEST VOLTAGE & THD:14.4V -1%THD Frequency response: 20Hz-20KHz Signal to Noise : 100dB < Damping Factor : 800 < Working impedance : 1ohm mono Input Sensitivity : 0.2V to6V Crossover : 18db oct/ slope Bandpass Filter: hi Pass Filter : 15Hz to 80KHz low Pass Filter : 80Hz to 20KHz BASS BOOST: 0 to 12 db BAST BOOST FREQ: 35Hz to 70Hz Remote controller CHECK: VOLTAGE/TEMP – PWR,PRT,CLIP . 1X2 gauge power & speaker terminals 2 oz copper printed circuit board Heavy-duty heatsink 3way protection :DC offset , Thermal , speaker shot . BURRBROWN OP AMP IC 4 HAND-WOUND POWER TRANSFORMERS. Tested Voltage & THD : 14.4V & Less than 1% THD Working voltage : 8.5V to16V FUSE RATING : 360AMPER Height: 68mm Width: 225mm Lenght: 210mm 33mm² anslutning
