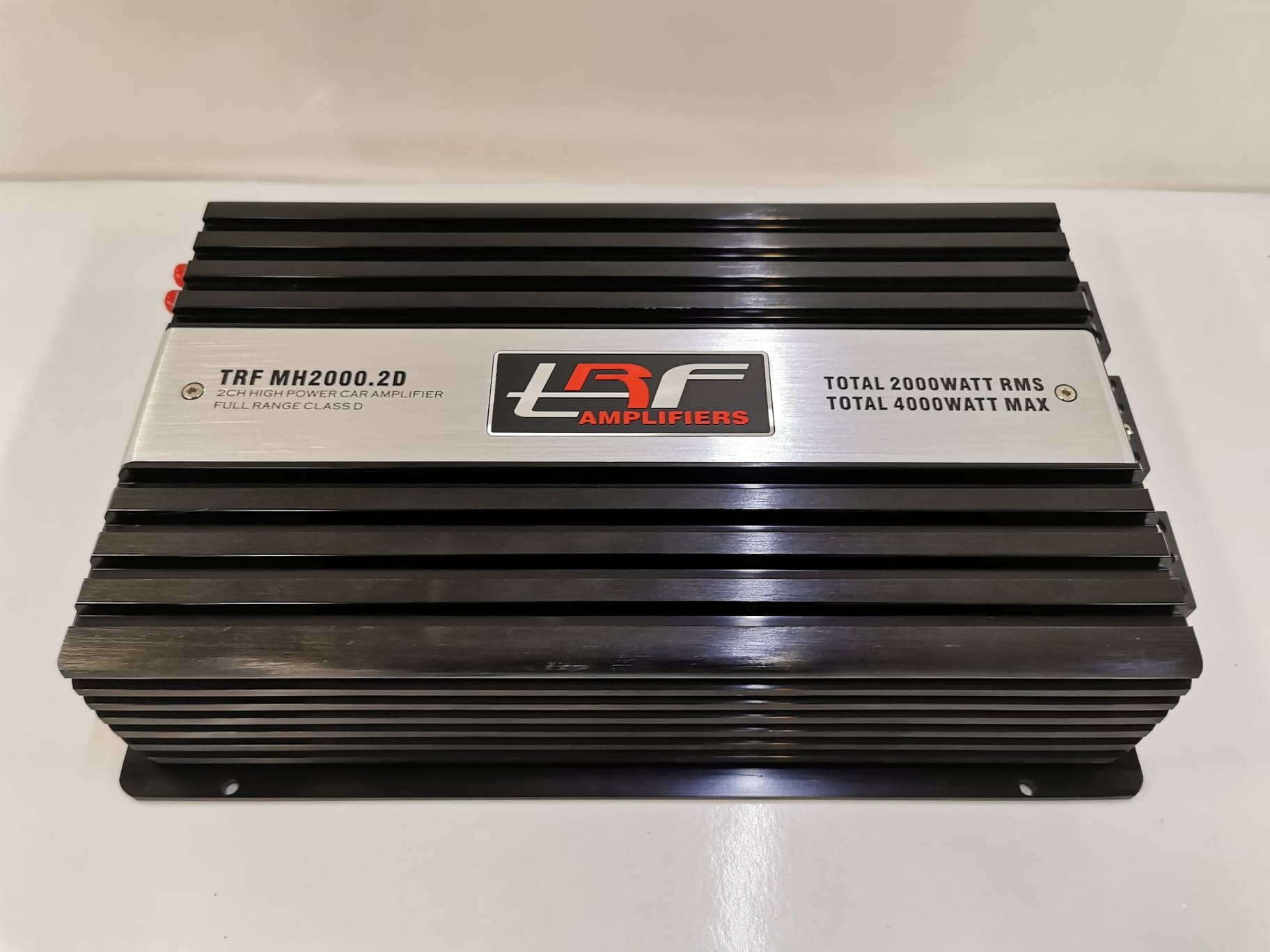

TRF MH 2000.2D 2x1000wrms

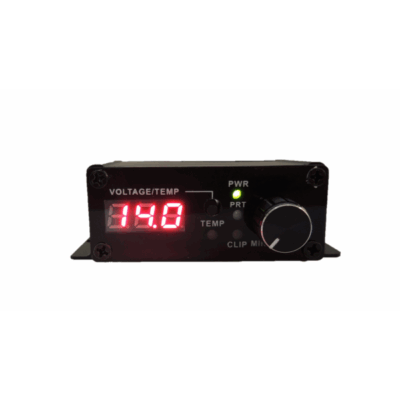

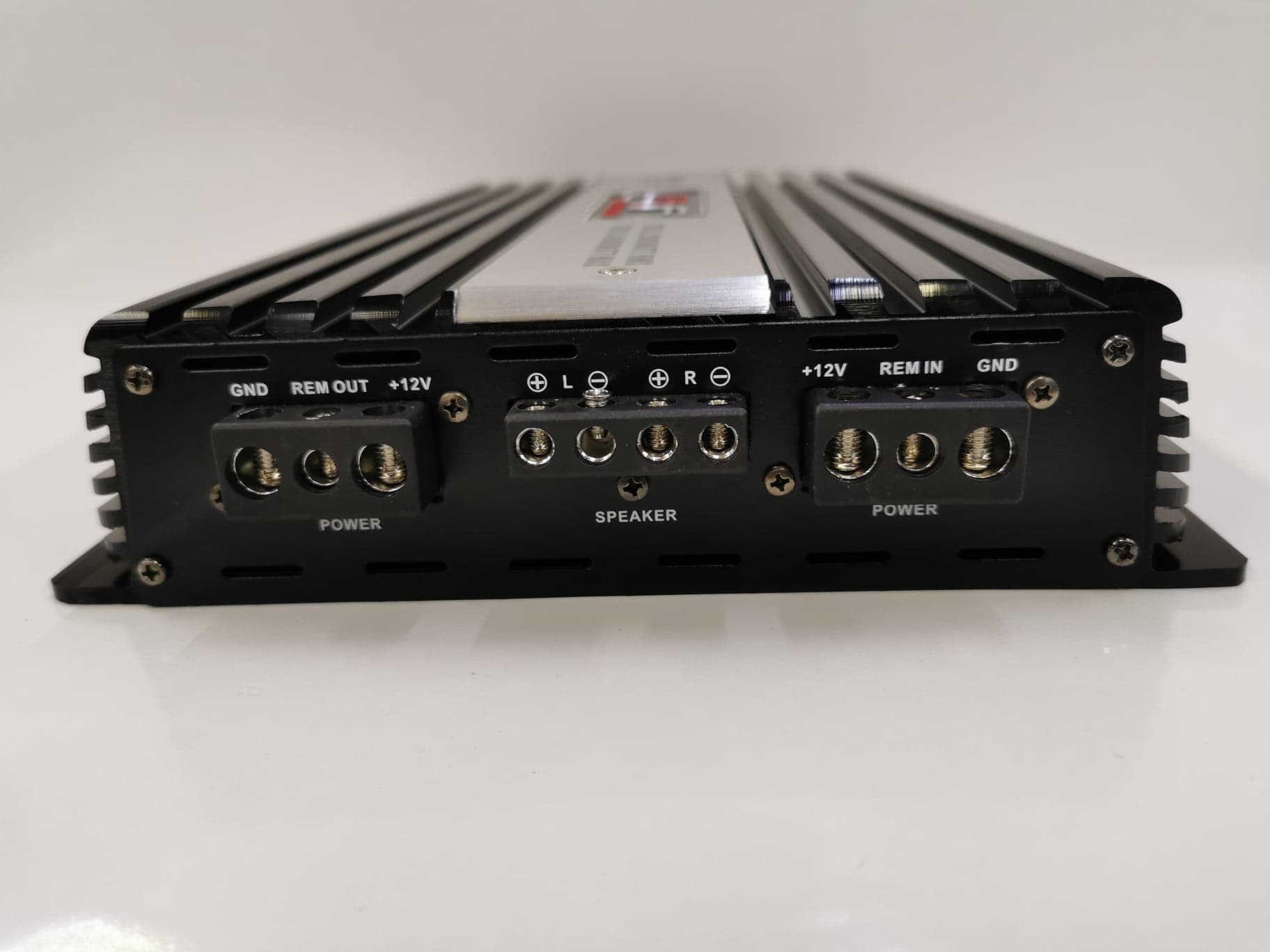

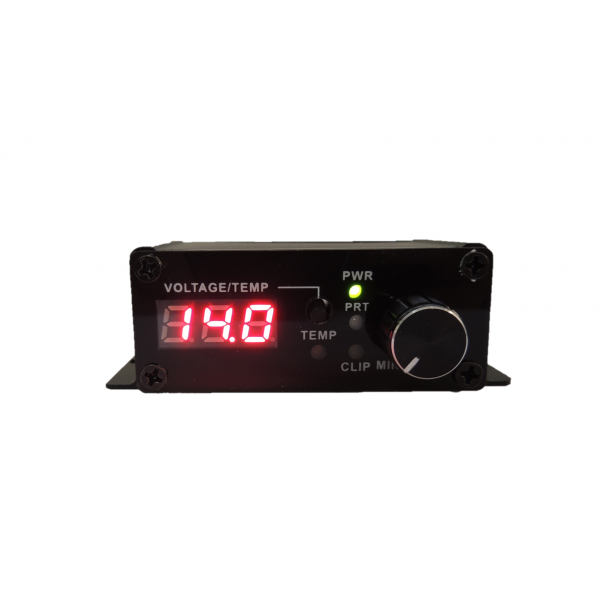

Frequency response: 10Hz -20KHz Signal to Noise : 97dB < Damping Factor : 400 < Working impedance : 1ohm stereo or 2ohm mono Input Sensitivity : 0.2V to6V Crossover : 18db oct/ slope Bandpass Filter: hi Pass Filter : 10Hz to 1KHz low Pass Filter : 35Hz to 10KHz Remote controller CHECK: VOLTAGE/TEMP – PWR,PRT,CLIP . 2X2 gauge power & speaker terminals 2 oz copper printed circuit board Heavy-duty heatsink 3-way protection: DC offset, Thermal, speaker shot. BURRBROWN OP AMP IC 4 HAND-WOUND POWER TRANSFORMERS. Tested Voltage & THD : 14.4V & Less than 1% THD Working voltage : 8.5V to16V FUSE RATING : 170AMPER Dimension : 385X255X65 mm. 35mm² anslutning
