Beskrivning

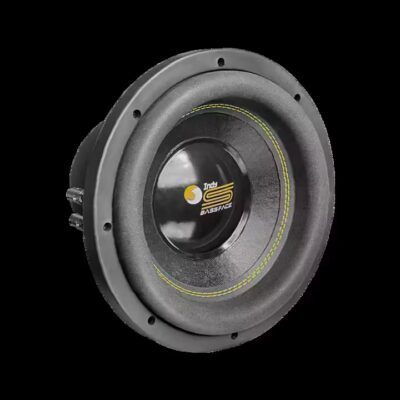

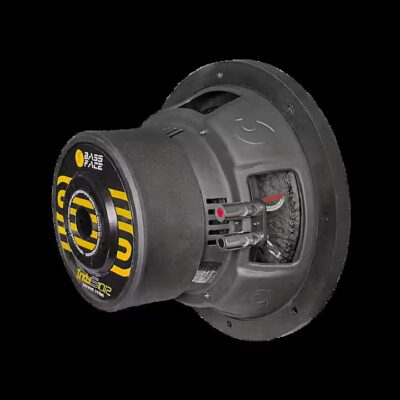

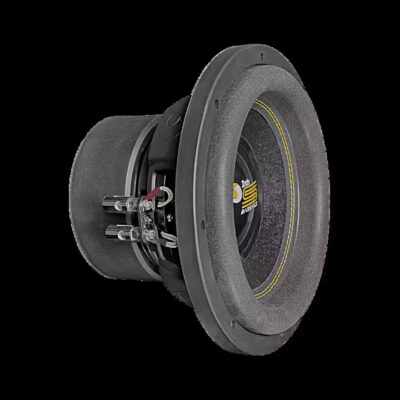

Art.nr: BASSFACE INDYS10/2
TECHNICAL HIGHLIGHTS Custom tooled spiders for added coil control High roll surround to allow for high excursion and cone area Soft suspension for deep low notes Light weight copper coated coil for a more musical response Glue reinforced coil to prevent separation Oversized 4 AWG inputs for easy use Dual tinsel leads for fail-safe in extreme use Extreme Duty Non Pressed PaPer Cone SPEAKER DATA 1000wrms Overall Diameter (mm) 263 Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 161 Installation Cutout Diameter (mm) 240 Overall Depth (mm) 157 Mounting Depth (mm) 260 Front Protrusion From Mounting Plane (mm) 25 Optimum Frequency Range (Hz) 20-120 Impedance (Ohm) (Nominal) 2+2 Total Magnet Weight (Oz) 124 Magnet Size 156*25 Magnet Type Y30 Magnet Qty 2 Top Plate thickness (mm) 10 Back Plate thickness (mm) 8 And Bump Recommended Bass Enclosure Type Ported/Sealed Recommended Bass Enclosure Volume (CuFt) 0.75-2 Recommended Bass Enclosure Tuning Frequncy (Hz) 35 Voice Coil Former Spec Aluminium Voice Coil Type Round Wire Voice Coil Internal Diameter (mm) 65.5 Voice Coil Winding Hight (mm) 36 Voice Coil Winding (Layers) 4 Cone Type Non Pressed Paper Sipder Compliance Medium Spider Type Progressive Spider Diameter (mm) 178 Spider Design 1×1, Spacer, 1×1 Surround Tall Smooth Surround Material Foam Tinsel Wire Double Round Wire Stitched Terminal 4 AWG Push TS PARAMETERS Revc (Ohm) 3.77 Fo (Hz) 35 Sd (Cm sq) 359.68 BL (T m) 16.106 Qms 6.844 Qes 0.692 Qts 0.628 SPL (Db) 82.4 Vas (Ltr) 17.4218 Cms (uM/N) 0.095 Krm (Ohm) 0.0027 Erm 1 Mms (g) 215.907 MMd (g) 208 Kxm (mOhm) 28.2 Exm 0.81 Xmax Both Way Total (mm) 25 Xmech Both Way Total (mm) 40 EBP 55.556
Introducing the Bassface Indy S – first of many lines to be developed in our own facility here in the UK by our new engineering team. This is a brand new design – not a single part of the Indy S is carried over fromprevious models. We literally started with a blank sheet of paper and engineered everything to offer the best possible reliability and performance for a woofer at this price point. Many prototypes, re-designs and modifications were made and a tremendous amount of reliability testing was undertaken in order to ensure outstanding longevity. Using custom designed coils and spiders tuned to each exact model we were able to develop for excellent excursion and power handling while implementing measures to prevent coil rub. The motor venting has been carefully designed to offer a good balance between noise reduction and cooling efficiency. The build of the woofer also incorporates some measures to add additional durability for extreme use. The high roll surround was chosen to allow to peak excursion while maintaining good cone area. In normal use the surround will not be put to its maximum limits – this helps to improve longevity. Dual leads add additional failsafe. The added bead of glue above and below the coil prevents separation of the coil when used in extreme situations. This is a useful feature for those that use this woofer for SPL burps. Oversized 4 AWG terminals make for easy installation and allow easy use of multiple cables to the one terminal when running multiple woofer configurations. The suspension, spiders and build of this woofer along with the over specified X-Mech allow safe use in almost ANY enclosure; bandpass, vented, sealed – the IndyS will cope with them all. The single stipulation is that it WILL NOT work in a free air/infinte baffle configuration. For keen enthusiasts this woofer offers good musicality at an affordable price point whilst maintaining great power handling and surprisingly good deep bass performance. Indy S is the Swiss Army Knife subwoofer.
